Arm Cylinder Excavators Spare Parts Repair Kit Compatible with Hitachi
Heavy-duty arm cylinder designed for Hitachi crawler excavators. Built with high-strength alloy steel, mirror-honed inner tube, and OEM-grade sealing systems. Delivers stable hydraulic power and long-term durability in mid- to heavy-duty excavation work.
| Cylinder Tube | Q345 / ST52 / 27SiMn / 20# Steel |
|---|---|
| Piston Rod | 45# / 40Cr / 42CrMo (Hard Chrome Plated) |
| Piston | Ductile Iron / Forged Steel (45# / 20Cr) |
| Cylinder Head | Q345 / 45# Steel / Cast Steel |
| Seals | Polyurethane (PU), NBR, FKM |
| Guide Bush | Bronze Alloy / Composite Materials |
| Ports & Fittings | Zinc-Plated Carbon Steel / Stainless Steel |
Quick Quote Request
Kinton Parts is trusted by professionals worldwide for delivering high-quality parts for excavators, bulldozers, and other construction machinery—with guaranteed performance and durability.
The arm cylinder (also known as the stick cylinder) is responsible for controlling the inward and outward movement of the arm—a crucial action in digging, trenching, and dumping operations. It connects the boom and the arm, converting hydraulic pressure into mechanical motion with consistent force output.
In Hitachi excavators, known for their balanced control and responsive hydraulics, the arm cylinder plays a key role in handling repetitive stress, especially in tasks involving deep trenching, angled digging, or close-quarter loading. A worn or undersized cylinder in this position can result in hydraulic inefficiency, joint vibration, and even accelerated wear in the boom-arm structure.
Materials & Internal Structure
Each arm cylinder is manufactured from forged alloy steel, with Q345B or equivalent grade barrels selected for high pressure containment and fatigue resistance. The piston rod is chrome-plated and polished to resist corrosion and scoring from debris or harsh soil conditions. All components are CNC-machined to ensure structural precision and high-pressure sealing reliability.
- Tube inner surface honed to < Ra 0.2μm
- Threaded ports and ends machined with ±0.05mm tolerance
- Welded joints tested for crack resistance and straightness
These design elements allow the cylinder to perform under tensile and compressive forces during fast arm retraction and extension.
Advanced Sealing System
A high-quality multi-layer sealing system ensures durability and zero leakage under continuous use:
- Buffer seals to absorb pressure spikes
- High-pressure rod seals to hold hydraulic fluid under force
- Dust wipers and wear rings to block contaminants
- End-cap O-rings for static sealing reliability
Sealing kits are selected from NOK, Hallite, or Parker-standard components, giving superior performance across different climates and working conditions.

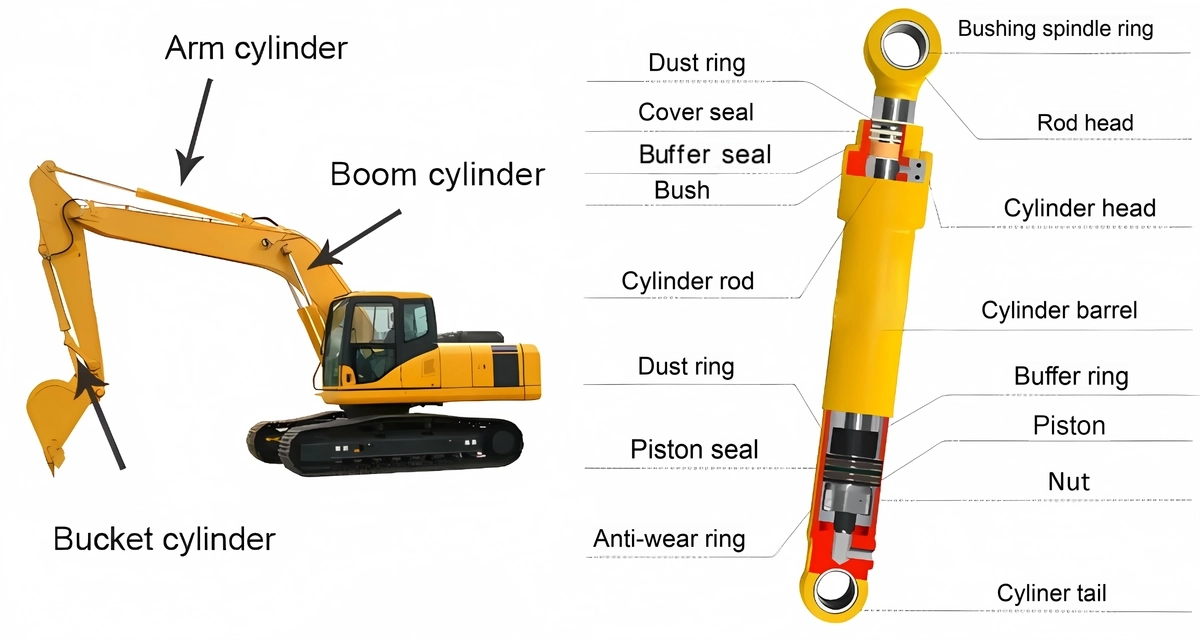

The diagram illustrates the internal design of a standard hydraulic cylinder—showing the piston, rod, wear rings, and seals. Understanding this layout helps operators and mechanics evaluate wear points and plan timely maintenance or replacements.
Cylinder Manufacturing Process
Below are the key production stages, with real factory photos illustrating each step:

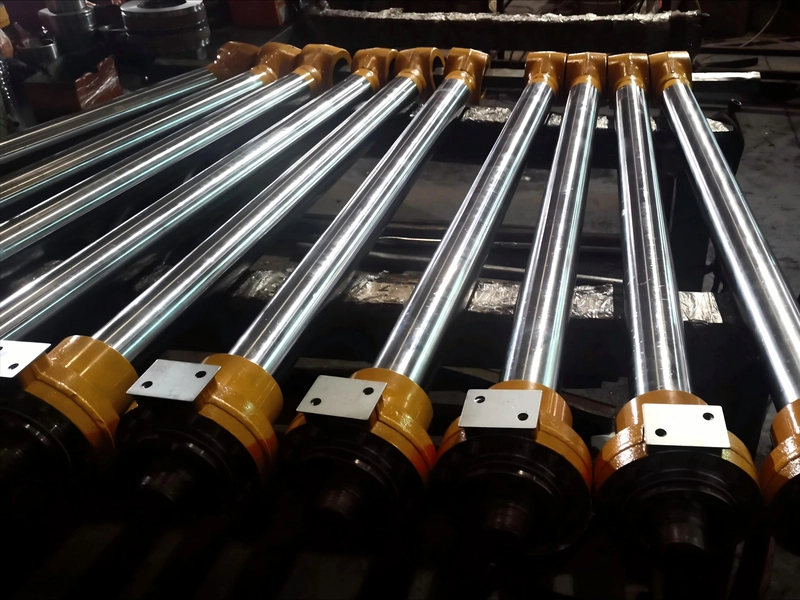

Rod Polishing & Surface Prep
The piston rod is ground and polished to achieve a mirror-smooth surface, ready for hard chrome plating. This step reduces wear on seals and ensures long-lasting hydraulic performance.
Assembly & Sealing
In a cleanroom assembly area, the barrel, piston, rod, and end caps are fitted and torqued to spec. Seal kits are carefully installed to prevent fluid loss and contamination.
Pressure Testing & Export Packaging

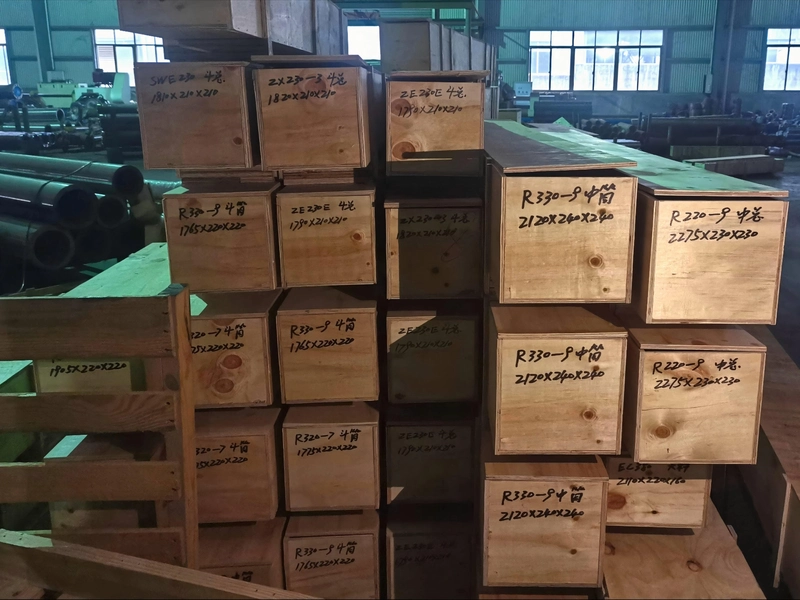

Each cylinder is tested at up to 150% of rated pressure to verify sealing integrity. Final units are cleaned, oil-coated, and securely packed in wooden crates for international shipping.
