Wholesale Seal Kits fit Hitachi Excavators Arm Boom Bucket Cylinders
High-performance seal kits specifically designed for Hitachi hydraulic cylinders. Each kit offers excellent wear resistance, leak prevention, and temperature stability. Suitable for a wide range of models including EX, ZX, and UH series—ideal for arm, boom, and bucket cylinders.
| Material | NBR/ PTFE/ ACM/ VMQ/ FKM/ HNBR/ EPDM/ Silicone and etc |
|---|---|
| Hardness | 90-95 Shore A |
| Working Temperature | -40–120℃(according to the material) |
| Pressure | Up to 690bar(10000psi) |
| Color | Black/Orange/Brown/White/Brown |
| MOQ | 12 Pieces |
Quick Quote Request
Kinton Parts is trusted by professionals worldwide for delivering high-quality parts for excavators, bulldozers, and other construction machinery—with guaranteed performance and durability.
These Hitachi hydraulic seal kits are tailored for efficient sealing of arm, boom, and bucket cylinders across a wide range of Hitachi excavators. Designed to match OEM specifications, our kits ensure reliable hydraulic pressure retention, reduce leakage, and prolong component life under demanding jobsite conditions.
Materials & Sealing Technology

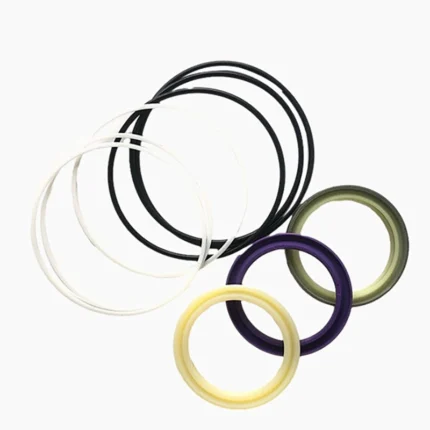

Each kit is composed of high-grade sealing components, including:
- PU seals: Superior elasticity and wear resistance
- PTFE backup rings: Prevent extrusion under high pressure
- NBR or FKM O-rings: Provide chemical resistance
- Dust wipers: Block contaminants from entering the cylinder system
The combination of these materials ensures optimal function in both high and low temperature environments.
Model Compatibility & OEM Reference
Our Hitachi seal kits are available for a wide range of cylinders and part numbers:
| part numbers | ||||||||
|---|---|---|---|---|---|---|---|---|
| 4255532 | 4352341 | 4352354 | 4352357 | 4369901 | 4465644 | 4485612 | 4639939 | 4640107 |
| 4640118 | 4649745 | 4649751 | 4649752 | 4652906 | 4448400 | 4448398 | 4448399 | 4647596 |
| FYA00001398 | YA00003778 | YA00001392 | YA00001400 | YA00001396 | YA00000745 | ZAX330 track adjuster seal kit | ||
| EX60-2 Arm cylinder seal kit | EX60-2 Boom cylinder seal kit | EX60-2 Bucket cylinder seal kit | ||||||
| EX215 Arm cylinder seal kit | EX215 Boom cylinder seal kit | EX215 Bucket cylinder seal kit | ||||||
| EX215 Center joint seal kit | EX215 Swing motor seal kit | FH200-2 Arm cylinder seal kit | ||||||
| FH200-2 Boom cylinder seal kit | FH220 Gear pump seal kit | FH220 Main pump seal kit | ||||||
| FH220 Center joint seal kit | FH220 Travel motor seal kit | FH270-3 Center joint seal kit | ||||||
| FH330 Main pump cylinder seal kit | FH330 Center joint seal kit | FH330 Travel motor seal kit | ||||||
| ZX30U Center joint seal kit | ZX130 Arm cylinder seal kit | ZX210 Arm cylinder seal kit | ||||||
| ZX210 Boom cylinder seal kit | ZX210 Bucket cylinder seal kit | ZX350LCH-5G Bucket cylinder seal kit | ||||||
| EX350-5 boom seal kit | ZAX200 bucket seal kit | ZAX330 boom seal kit | ||||||
Please contact us with your part number or cylinder specs to confirm compatibility.
Installation Instructions
We provide two standard methods to install hydraulic cylinder seals. Choose based on your seal type and available tools.
Installation Method 1: Standard Press-Fit Assembly
- Use the mounting pin to align the seal components inside the cylinder bore.
- Use a ballast tool, locating cone sleeve, and auxiliary pressure plate to gradually compress and install the seal components into the gland without damaging the material.
This method is suitable for standard seals with medium flexibility, and reduces the risk of tearing during installation.
Installation Method 2: PTFE & O-Ring Installation with Calibration
O ring installation
PTFE Slip Ring Install
Calibration
- O-Ring Installation
Lubricate and place each O-ring into its groove using specialized tools to avoid twisting or over-stretching. - PTFE Slip Ring Installation
Gently expand the PTFE ring using a heated mandrel or forming tool, then place it over the piston or gland.
Allow it to cool and reshape into its groove precisely. - Calibration
Use a calibration tool or press-fit tool to compress the installed seals uniformly and ensure correct fit and compression rate before cylinder reassembly.
This method is especially recommended for high-pressure or precision-fit PTFE seals and wear rings.
Quality Control
All kits undergo pressure testing simulation, dimensional checks, and material verification before shipment. We ensure every seal set meets or exceeds OEM performance standards.
Maintenance Tips
- Replace seals regularly based on operating hours and oil condition
- Keep cylinders clean and well-lubricated
- Use correct hydraulic fluid to avoid premature seal wear
- Store kits in a cool, dry place away from direct sunlight
Contact for Quote & Custom Orders
Need help identifying the right kit for your Hitachi model? Send us your cylinder specs or part number. Our technical team will recommend the exact seal kit.
