Excavator Hydraulic Cylinder Seal Kits for Doosan Arm Boom Bucket Cylinders
Our Doosan hydraulic cylinder seal kits are engineered to provide tight sealing performance under extreme working conditions. Compatible with a wide range of Doosan excavators, these kits feature wear-resistant materials, precise sizing, and long-term durability for boom, arm, and bucket cylinders.
| Material | NBR/ PTFE/ ACM/ VMQ/ FKM/ HNBR/ EPDM/ Silicone and etc |
|---|---|
| Working Temperature | -40–120℃(according to the material) |
| Pressure | Up to 690bar(10000psi) |
| Hardness | 90-95 Shore A |
| Color | Black/Orange/Brown/White/Brown |
| MOQ | 12 Pieces |
Quick Quote Request
Kinton Parts is trusted by professionals worldwide for delivering high-quality parts for excavators, bulldozers, and other construction machinery—with guaranteed performance and durability.
Doosan excavators rely on robust hydraulic systems for optimal digging and lifting performance. Each seal kit in our lineup is tailored to meet or exceed OEM specifications, offering excellent sealing capacity, resistance to pressure fluctuations, and protection against contaminants. Whether you’re replacing seals in a DH220 bucket cylinder or a DX300 boom cylinder, we ensure a precise fit and smooth installation.
Material Composition & Features
Our seal kits are manufactured using a blend of high-performance materials, each selected for its functional role:
- PU (Polyurethane) for wear-resistant dust seals
- PTFE (Teflon) for low-friction buffer rings
- NBR & FKM for oil resistance and thermal stability
- Nylon for back-up rings and anti-extrusion support
These materials are designed to withstand hydraulic oil exposure, dirt ingress, and repeated movement under high pressure.
Compatible Cylinder Types
We offer seal kits for the following hydraulic cylinder positions:
- Boom Cylinder Seal Kit
- Arm Cylinder Seal Kit
- Bucket Cylinder Seal Kit
All kits include piston seals, rod seals, dust wipers, back-up rings, wear rings, and O-rings required for complete rebuilds.
Common Doosan Applications
Seal kits available for the following popular Doosan models:
| PART NUMBERS | |||||||
|---|---|---|---|---|---|---|---|
| 274-00004BKT | 440-00042BKT | 440-00044AKT | 2274-1014AKT | 2440-9144KT | 2440-9146KT | 2440-9236KT | 2440-9240KT |
| 2440-9241KT | 2440-9413KT | 2440-9441KT | 401107-00171A | 401107-00298A | 401107-01220A | DX225 | K9001007 |
| K9001008 | K9001009 | K9001878 | K9001892 | K9001901 | K9002066 | K9002067 | K9002068 |
| K9002289 | K9002290 | K9002306 | K9002307 | K9002308 | K9003934 | K9003935 | K9004402 |
| K9004899 | K9005434 | 440-00139 | 2480-1013KT | 2440-9234KT | 2440-9339KT | 2440-9090KT | |
| S225LC-V Arm cylinder seal kit | S225LC-V Boom cylinder seal kit | S225LC-V Bucket cylinder seal | |||||
If your model is not listed, feel free to contact us with cylinder measurements or original seal codes.
Installation Instructions
We provide two standard methods to install hydraulic cylinder seals. Choose based on your seal type and available tools.
Installation Method 1: Standard Press-Fit Assembly
- Use the mounting pin to align the seal components inside the cylinder bore.
- Use a ballast tool, locating cone sleeve, and auxiliary pressure plate to gradually compress and install the seal components into the gland without damaging the material.
This method is suitable for standard seals with medium flexibility, and reduces the risk of tearing during installation.
Installation Method 2: PTFE & O-Ring Installation with Calibration
- O-Ring Installation
Lubricate and place each O-ring into its groove using specialized tools to avoid twisting or over-stretching. - PTFE Slip Ring Installation
Gently expand the PTFE ring using a heated mandrel or forming tool, then place it over the piston or gland.
Allow it to cool and reshape into its groove precisely. - Calibration
Use a calibration tool or press-fit tool to compress the installed seals uniformly and ensure correct fit and compression rate before cylinder reassembly.
This method is especially recommended for high-pressure or precision-fit PTFE seals and wear rings.

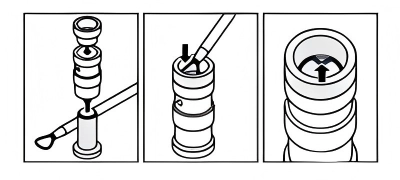

O ring installation

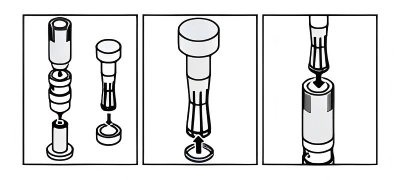

PTFE Slip Ring Install

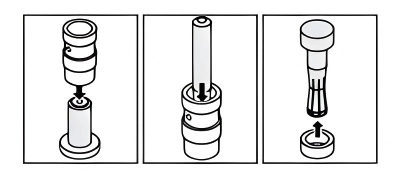

Calibration
Quality Control
Every Doosan seal kit undergoes thorough inspection for:
- Dimensional accuracy
- Material hardness and elasticity
- Leak testing under simulated pressure
- Packaging integrity for export
We ensure traceability and quality for both OEM replacement and aftermarket us
Why Choose Our Doosan Seal Kits?
- OEM-level sealing precision
- Broad compatibility with multiple models
- Full kit packaging — no missing components
- Long-lasting performance in harsh work sites
- Export-ready, labeled, and boxed
