Why Zero Tail Swing Excavators Are Hard on Track Roller Seals
In urban construction and confined job sites, Yanmar ViO55 and ViO80 zero tail swing excavators are widely favored in the rental market for their compact footprint and outstanding maneuverability. However, the same design advantage—where the upper structure does not exceed the track width—also creates a much more demanding working environment for the undercarriage. In particular, track rollers are exposed to higher load concentration, making sealing reliability a critical factor in long-term operational stability.
Undercarriage Loads in Zero Tail Swing Designs
On conventional excavators, part of the upper structure mass is distributed toward the rear, allowing undercarriage loads to spread more evenly along the track frame.
In contrast, zero tail swing designs transfer more machine weight and working reaction forces toward the center of the undercarriage.
For ViO-series machines, this structural characteristic means that track rollers experience:
- Higher instantaneous impact loads during travel and sudden stops
- Increased torsional stress during frequent steering
- Repeated compression from tracks during short-distance relocation
All of these factors place continuous stress on the internal sealing system of the track roller.
Frequent Relocation: Amplifying Track Roller Oil Leakage
In rental applications, ViO55 and ViO80 excavators often operate under high relocation frequency, far exceeding that of owner-operated machines. Short-distance travel on hardened surfaces, combined with frequent starts, stops, and turns, repeatedly disrupts the internal oil film of the track roller.
If seal preload is insufficient, or if the sealing lip undergoes micro-deformation under impact, lubricating oil is gradually forced out.
What begins as minor surface oil traces can quickly escalate into:
- Accelerated bushing and roller shell wear
- Rising operating temperatures
- Bearing seizure or complete roller failure

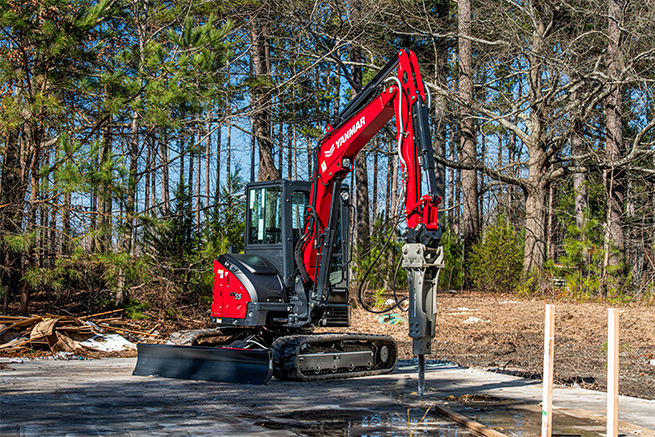

VIO55

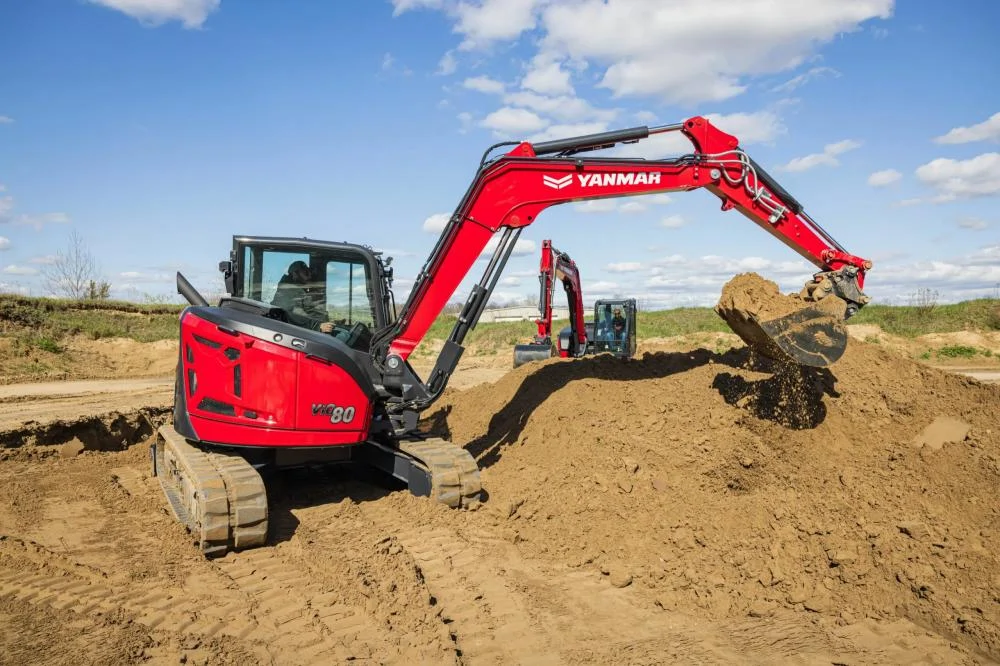

VIO80
Dual Cone Seals: Critical for Compact Undercarriages
To address the limited space and concentrated loads of zero tail swing undercarriages, KINTON PARTS track rollers use a Dual Cone Seal structure. This design forms a stable oil-sealing chamber between dynamic and static sealing surfaces.
The key advantage of dual cone seals lies in their ability to maintain continuous contact pressure—even under high shock loads and slight misalignment. This effectively prevents:
- Lubricating oil leakage
- Ingress of dust, water, and abrasive particles
While dual cone seals demand higher assembly precision and material consistency than conventional rubber seals, their service life and sealing stability are significantly better suited to high-utilization rental equipment.
Reducing Undercarriage Maintenance Risks for Rental Fleets
For rental companies, track roller failure is not just a repair expense—it represents unplanned downtime and disrupted rental schedules. A single oil leak can force an early machine return, directly impacting utilization rates.
KINTON PARTS dual cone seal track rollers are engineered specifically for high-frequency, compact zero tail swing machines, helping rental operators maintain undercarriage reliability across frequent relocations and mixed ground conditions.
KINTON PARTS: Compact Machine Undercarriage Solutions
As zero tail swing excavators continue to gain market share in rental fleets, undercarriage components are no longer simple consumables—they have become key determinants of equipment profitability.
KINTON PARTS continuously optimizes track roller structure and sealing solutions based on real working conditions, delivering model-matched undercarriage components for Yanmar ViO55, ViO80, and similar compact excavators.
In operating environments where compact design and high load coexist, reliable sealing remains the foundation of long-term track roller performance.
